ExtIO

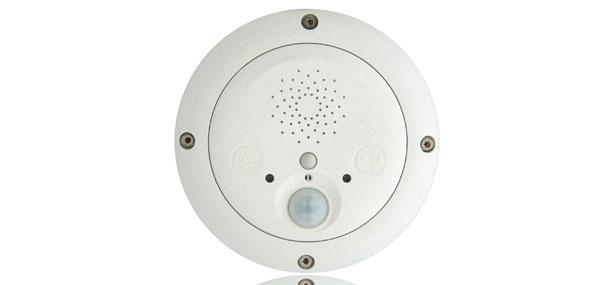

With its new ExtIO module, MOBTEK leads the way to completely new technology. The ExtIO can be connected to a camera either directly via USB or through a network and extends the MOBOTEK camera to a high-performance audio unit with microphone and speaker, infrared motion detector, temperature sensor and additional switch in-/outputs. Door and gate intercom systems are easy to implement using the two illuminated buttons.
* 2008/06 • MSRP (Önerilen son kullanıcı fiyatları) • Fiyatlar Langmeil'den Ex Works'tür, Almanya (EXW) • VAT ve diğer masraflar hariçtir • Bilgiler haber verilmeden değiştirilebilir!
ÖZELLİKLER
Technical Data
| Interfaces | USB, Ethernet 10 Mbps half duplex |
| Audio | Microphone and speaker, integrated amplifier and equalizer |

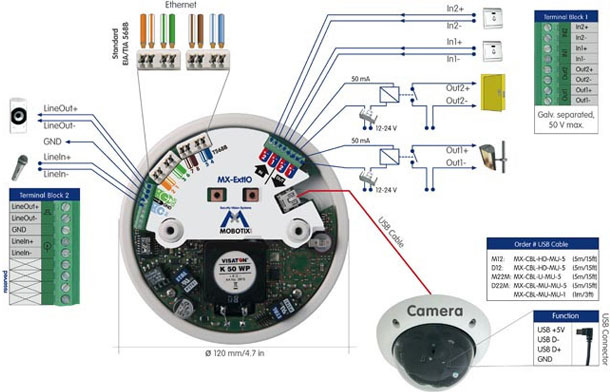

| Input contacts | 2 signal inputs (galvanically separated) Safety extra-low voltage SELV (AC/DC) Switching voltage of ExtIO provided (also external) |
| Output contacts | 2 signal outputs (potential-free) Safety extra-low voltage SELV (AC/DC), up to 100 mA) |
| Sensors | Passive IR motion detector (PIR) Temperature sensor for room temperature Dawn sensor IR remote sensor 2 illuminated buttons |
| Status display | 2 status LEDs |
| Certificates | EMV (DIN 61000), FCC Part 15 for Class B Devices |
| Operating conditions | IP65 (DIN EN 60529) |
| Operating temperature | -30 ° to +60 ° C (-22 F to + 140 F) (DIN EN 50125) |
| Power supply | USB, Power over Ethernet (PoE)) |
| Power input | typ. 1 W |
| Dimensions | ∅ x H: 16 x 4.5 cms, compatible with D22 accessories |
| Weight | approx. 430 g |
| Standard delivery | Weatherproof housing made of fiberglass-reinforced composites (PBT-30GF), allen wrench, cable grommets, stainless steel screws with dowels, manual |
| Alarmlar/Olaylar | Triggering of events by integrated multiple-window motion detection, external signal, temperature sensor, notification over email, FTP, IP-Telephony (VoIP, SIP), visual/acoustic alarm, pre- and post-alarm images |
| Ses | Integrated microphone and speaker, lip-synchronous audio, two-way speaker, audio recording |
| Arayüzler | Ethernet 10/100, MiniUSB, MxBus |
| Ses/Telefon | VoIP, SIP, two-way speaker, event notification |
| Güvenlik | User-/Group management, HTTPS/SSL, IP address filter, IEEE 802.1x, Intrusion Detection Certificates |
| Sertifikalar | EMV (living environments, industry), CE, FCC |
| Güç kaynağı | Year-round Power over Ethernet (IEEE 802.3af) PoE class variable, typ. ≈ 4.5 W |
| Çalışma şartları | IP65 with wall mount/IP54 w/o wall mount (DIN EN 60529), -30 bis +60 °C (-22 to +140°F) |
| Boyutlar | Ø x H: 2005 x 108 mm (D14D), Ø H 205 x 125 mm (D14D-Sec-180°), Weight: ca. 650 g (with lenses) |
| Standart Teslimat | Housing (high-resistance composites - PBT-PC), white, shockproof polycarbonate dome (transparent), free choice of 2 lens modules, mounting parts, allen wrench, patch cable, manual, software, MicroSD card 4GB |

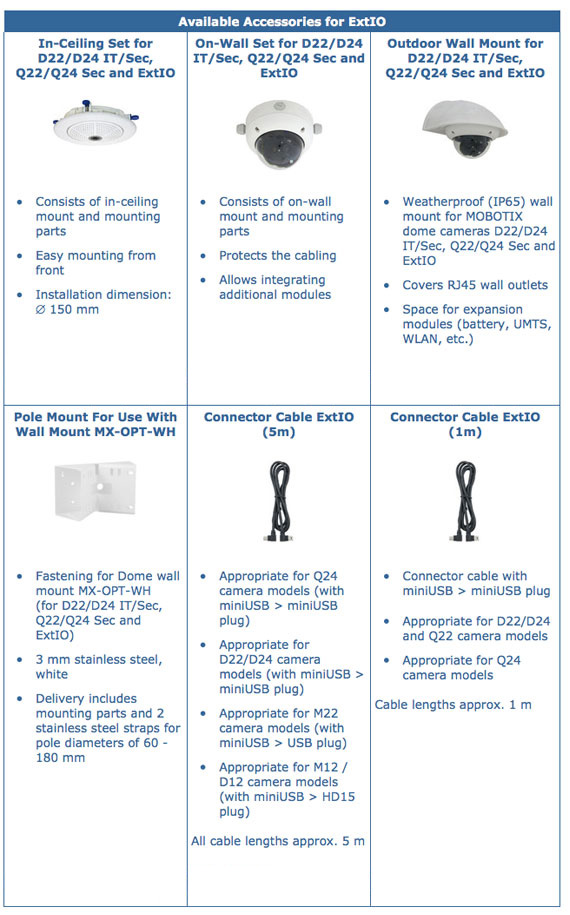

Accessories
